LB-RVC 0017

Features

Built-in Intel® Atom™ D510 Dual Core 1.66GHz processor

Internal wireless communication (3.5G, GSM/ GPRS, WLAN, BT)

Smarter ignition power on/off, delay-time and low voltage protection

PCI-104 and mini card expansion interface

8~60V wide range DC power input

Dual VGA output (clone mode)

Rugged fanless design to meet MIL standard

Overview

LB-RVC 0017, a popular transportation computer, is dedicated to computing solution for in-vehicle surveillance applications. The LB-RVC 0017 computer utilizes the powerful video processing capability of the of Intel® Atom™ D510 processer which can support Dual Core technology. With additional video capture module, LB-RVC 0017 PC is the ideal solution for in-vehicle surveillance applications.

Specifications
CPU

Intel® Atom™ D510 Dual Core 1.66GHz

Main Chipset

ICH-8M

Memory

One 200-pin DDR2 667/ 800MHz SO-DIMM slot (up to 2GB)

Expansion

1 x Mini-PCIe socket (PCIe + USB) for WLAN option
1 x Mini-PCIe socket (USB) x 1 for WWAN option
1 x Bluetooth module for option
1 x Bundle GPS module or optional GPS with dead reckoning
1 x PCI-104

I/O Interface-Front

1 x Line-out, 1 x Mic-in
1 x SIM card socket
1 x System reset button
2 x USB 2.0 host type A connector
4 x LED’s for power, storage, WLAN/ HSDPA and GPIO
1 x Power button
4 x Antenna hole reserved for SMA-type antenna connector (WWAN/ WLAN/ BT)

I/O Interface-Rear

1 x 8~60VDC input with Ignition and 23W typical power consumption
1 x 5V/1A and 12V/1A DC output, SMBus
Fuse
1 x DB9 female connector for isolated 4GPI and 4GPO
2 x DB15 VGA (clone mode)
1 x DB26 LVDS interface with 12V and USB2.0
2 x DB9 RS-232 (COM1, COM2)
1 x DB9 RS-485 (COM3)
1 x Line-out, 1 x Mic-in
2 x USB 2.0 host type A connector
1 x RJ45 with LEDs for 10/ 100/ 1000Mbps Ethernet
1 x SMA-type GPS antenna connector

Expandable Storage

1 x 2.5" SATA II HDD bay
1 x SATA DOM

Power Management

Selectable boot-up & shut-down voltage for low power protection by software
Setting 8-level on/ off delay time by software
Status of ignition and low voltage status can be detected by software
Support S3/ S4 suspend mode

Operating System

Windows XP/ WES2009
WES 7E

Dimensions

260mm (W) x 176mm (D) x 50mm (H) (10.24" x 6.93" x 1.97")
2.19 Kg (4.82 Lb)

Construction

Aluminum enclosure with fanless design

Environment

Operating temperatures:
Ambient with air:
-30°C to 60°C (SSD)
-30°C to 50°C (HDD)
Storage temperatures: -40°C to 80°C
Relative humidity: 10% to 90% (Non-condensing)
Vibration (random): 2g@5~500 Hz with SSD; 1g@5~500 Hz with HDD (in operation)
Vibration (with SSD):
Operating: MIL-STD-810F, Method 514.5, Category 20, Ground Vehicle – Highway Truck
Storage: MIL-STD-810F, Method 514.5, Category 24, Integrity Test
Shock (with SSD):
Operating: MIL-STD-810F, Method 516.5, Procedure I, Trucks and semi-trailers=20g
Crash hazard: MIL-STD-810F, Method 516.5, Procedure V, Ground equipment=75g

Standards/ Certifications

CE approval
FCC Class B
e13 Mark

Accessoires
VTK 61B

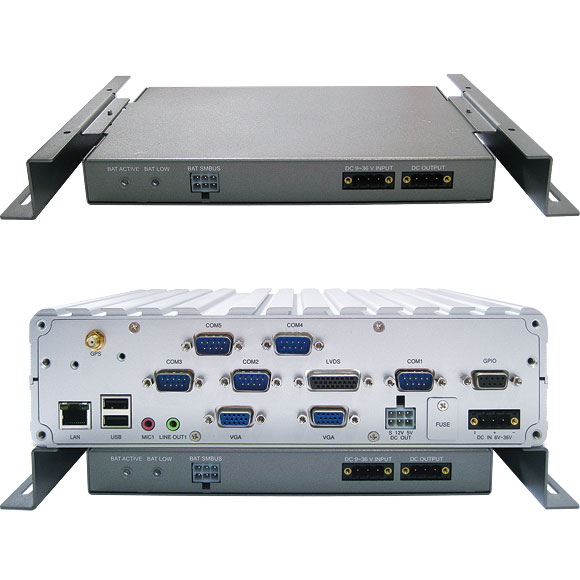

Back up smart battery + charger; Thermal control; SMBus interface; For VTC series
VTK 61P

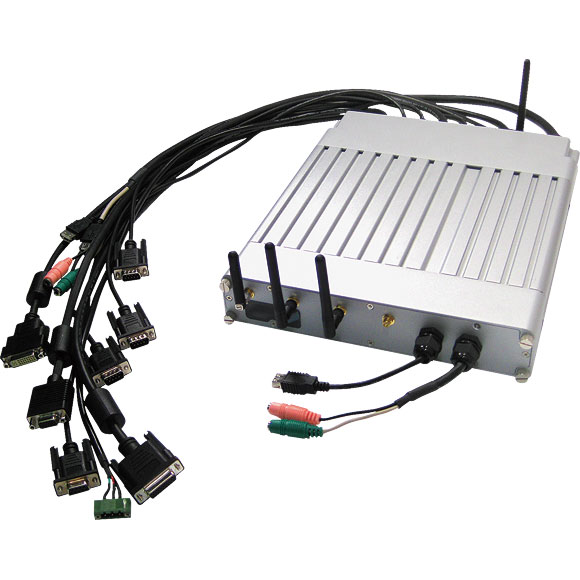

IP65 compliant, anti-dust & anti-water protection kit; Cables and antennas can be connected on VTC 6000 with external peripheral devices; LED status is readable through window
